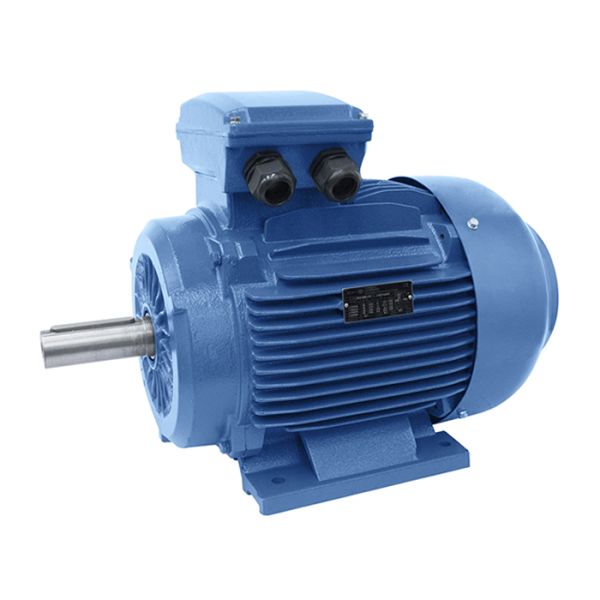

22Kw 8 Pole 400/690V 3Ph IE3 Cast Iron Electric Motor

Downloads:
Aluminium Frame Single & 3 Phase Motors

These cast iron frame 3 phase electric motors suit a wide range of industrial and commercial applications. Adhereing  to the latest European mechanical and electrical standards they are heavy duty, rugged and reliable. They are of a high quality, suit wet and dusty environments and are efficiency IE3 rated. Used in applications such as air conditioners, fans, hydraulics, agricultural, packing equipment and so on. You can improve efficiency as these motors run smoother than their single phase counterparts. The operating conditions can be preserved inside the unit in most working environments. All motors are supplied with feet as part of the motors casting and terminal nox located on the top.

Key points:

Dual European voltage
50/60 Hz rated
Inverter drive rated
Inverter rated insulation
Temperature rise: Class B (110°C)
Sheet metal fan cover
Continuous duty S1
Terminal box (complete with metric cable gland entries)
