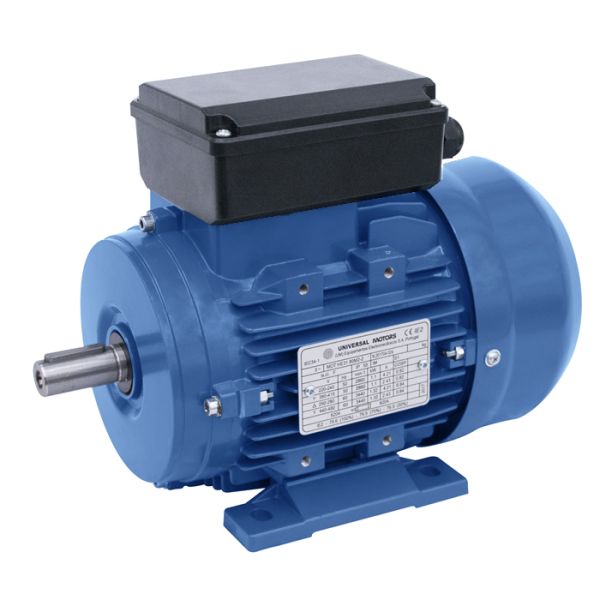

1.1Kw 2 Pole 230V 1Ph Perm Cap. IE1 Electric Motor

Available Mounting Options:
B3 Foot Only
B14 or B5 Flange Only
B34 or B35 Foot & Flange
Availability: In stock

These aluminium frame single phase permanent capacitor electric motors suit a wide range of industrial and domestic applications. Adhereing to the latest European mechanical and electrical standards they are heavy duty, rugged and reliable. They are of a high quality, suit wet and dusty environments and are efficiency IE1 rated. Used in applications such as air conditioners, fans, hydraulics, agricultural, packing equipment and so on. These motors are for use with low starting torque applications.

Key points:

Single European voltage
50 Hz rated
Temperature rise: Class B (110°C)
Sheet metal fan cover
Continuous duty S1
Terminal box (complete with metric cable gland entries)

More Information
Motor Voltage 230V 1PH
Efficiency IE1
Power 1.1kW
No of Poles 2
Speed (RPM) 3000
Full Load Current (A) 6.71
Thermal Monitor N/A
Motor Frame Size 80M
Motor Frame Material Aluminium
IP Rating IP55
