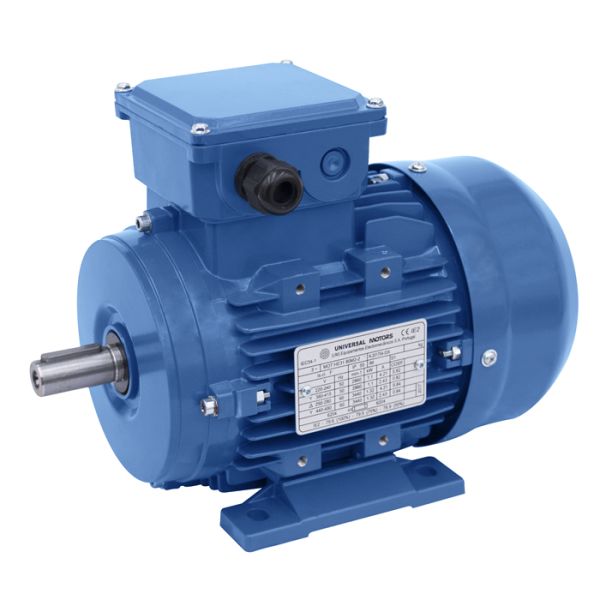

Aluminium Frame Single & 3 Phase Motors
These aluminium frame 3 phase electric motors suit a wide range of industrial and commercial applications. Adhereing to the latest European mechanical and electrical standards they are heavy duty, rugged and reliable. They are of a high quality, suit wet and dusty environments, have a lightweight aluminium construction and are efficiency IE2 rated. Used in applications such as air conditioners, fans, hydraulics, agricultural, packing equipment and so on. You can improve efficiency as these motors run smoother than their single phase counterparts. The operating conditions can be preserved inside the unit in most working environments.
Key points:
Motor Voltage | 230 / 400V 3PH |
---|---|
Efficiency | IE2 |
Power | 0.18kW |
No of Poles | 4 |
Speed (RPM) | 1500 |
Full Load Current (A) | 0.56 |
Thermal Monitor | N/A |
Motor Frame Size | 63S |
Motor Frame Material | Aluminium |
IP Rating | IP55 |
